Professional Outdoor RGB Laser System for Stadiums, Arenas, and Large-Scale Shows

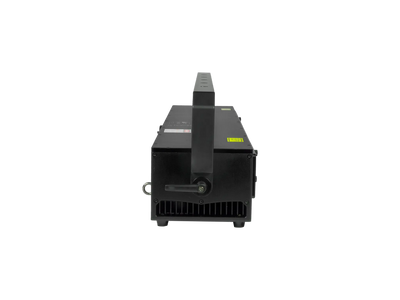

The Unity LaserRay 13 RGB (XY-IP65) is a high-output, full-color laser bar system designed for lighting professionals who demand precision, durability, and serious visual impact.

Built inside a rugged IP65-rated housing, this multi-head laser array is engineered for outdoor environments and touring applications. It delivers powerful beam effects, clean aerial graphics, and fast, accurate scanning for stadiums, theaters, mega clubs, houses of worship, and small to mid-sized outdoor shows.

⚠️ Sold as a pack of two units, housed in a single heavy-duty rolling flight case.

For full manufacturer details, visit the official Unity product page:
https://unitylasers.com/products/laser-ray-13

---

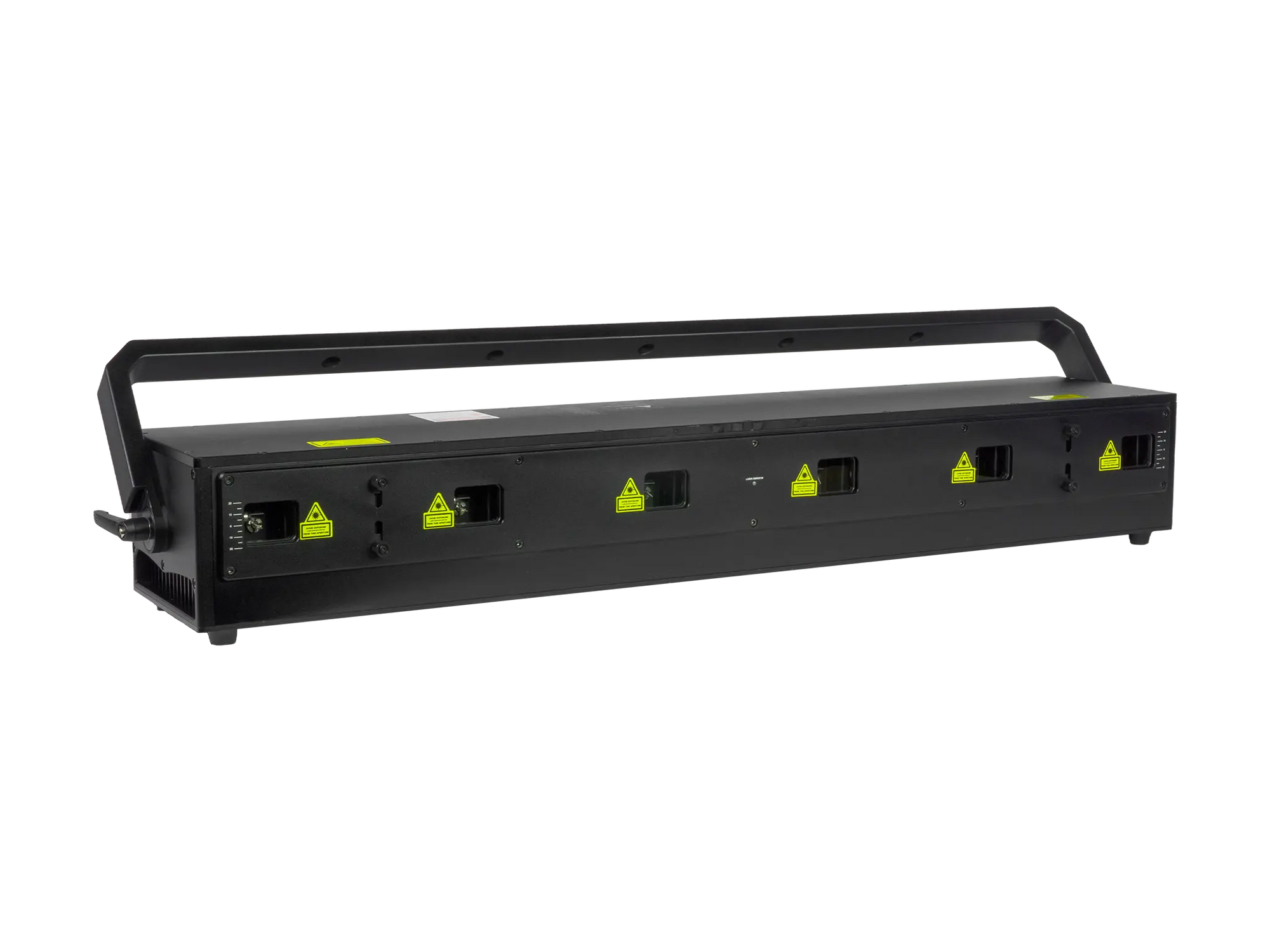

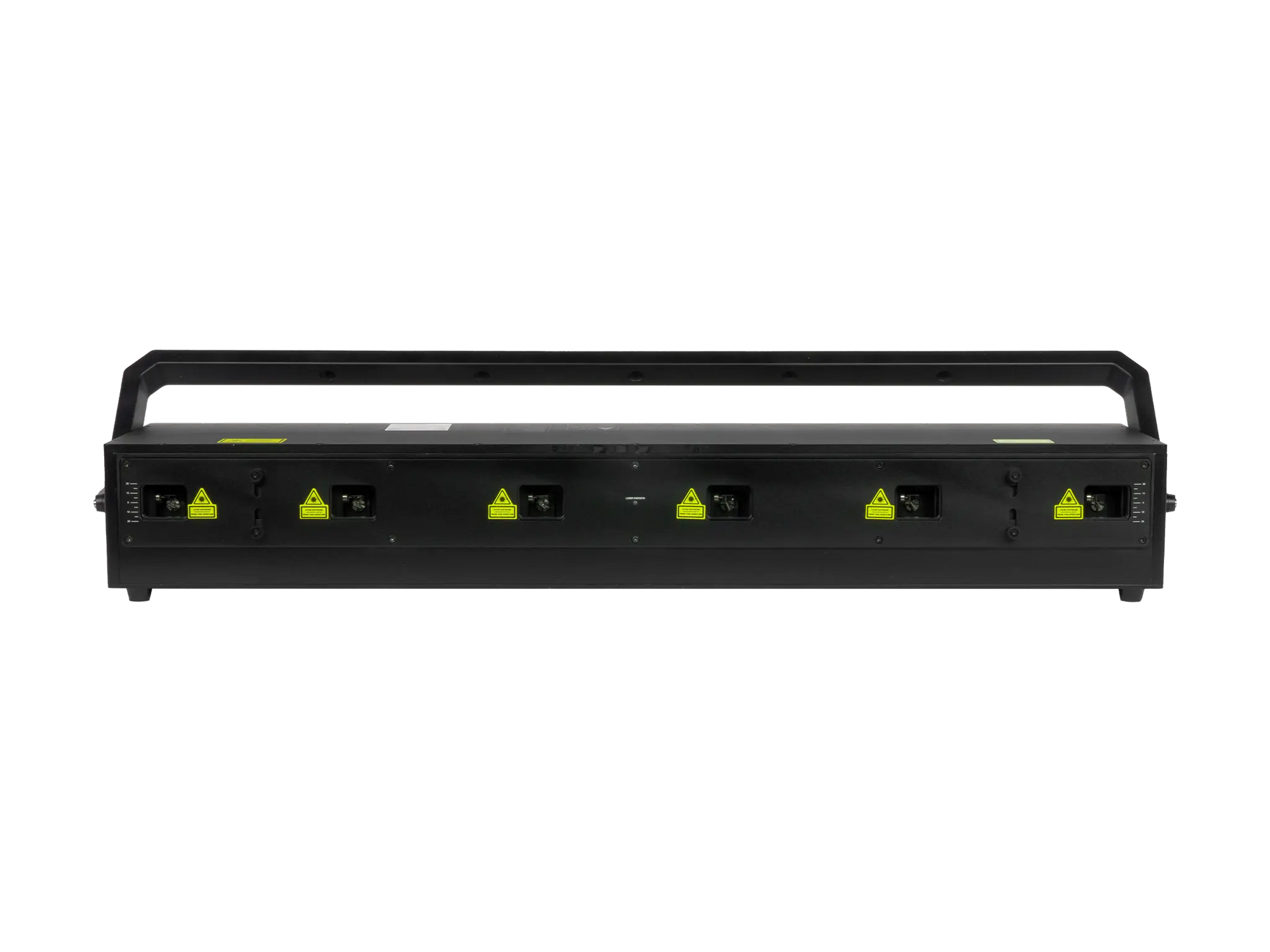

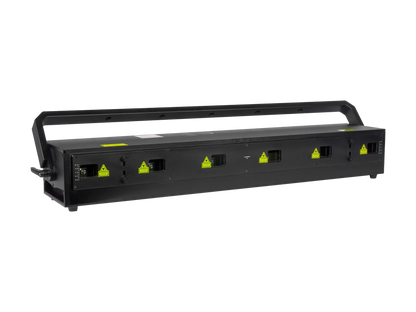

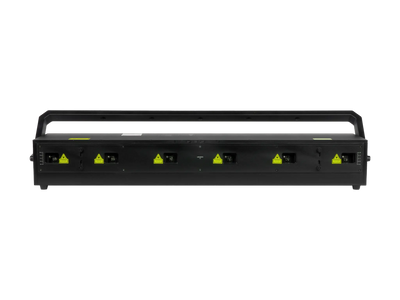

High-Speed XY Scanning with 6 Independent Heads

The LaserRay 13 features:

• Six independent laser heads

• High-speed XY scanning at 30,000 points per second

• 45° scan angle

• Advanced optical correction technology

Each head delivers over 2,200mW, for a guaranteed total output exceeding 13,200mW.

This allows for:

• Crisp beam effects

• Wide-area coverage

• Layered aerial designs

• Multi-zone projection mapping

• High-impact festival and arena visuals

---

Full DMX Control – 210 Channel Profile

Control is handled entirely via DMX, making integration into professional lighting rigs simple.

• 35-channel assignment per head

• 210-channel total profile

• Adjustable safety zones

• Geometric correction

• Color control

• Beam shaping and masking

You can program and operate the LaserRay 13 from the lighting console of your choice. Whether used standalone or alongside additional laser systems, it integrates seamlessly into existing production environments.

---

IP65 Rated for Outdoor Use

The IP65 weatherproof enclosure makes this system suitable for:

• Outdoor concerts

• Touring productions

• Theme parks

• Stadium installations

• Permanent exterior installations

Operating temperature range: -10°C to 45°C

---

Technical Specifications

Product Name: LaserRay 13 RGB (XY-IP65)
Laser Type: Full-color semiconductor diode laser system with XY scanning
Guaranteed Optical Output: >13,200mW total
Optical Output Per Head: >2,200mW

RGB Output Per Head:

• Red: 600mW (638nm)

• Green: 800mW (525nm)

• Blue: 800mW (445nm)

Beam Size: 3 x 3 mm
Beam Divergence: <1.4mrad (Full Angle)
Modulation: Analog 100kHz
Scanning Speed: 30K PPS @ 8°
Scan Angle: 45°

Power Requirements: 100–240V / 50–60Hz
Max Consumption: 600W
Weight (per unit): 24kg

Dimensions (mm):
Length: 998
Width: 222
Height: 148

---

Professional Laser Safety Compliance

The LaserRay 13 fully complies with:

• EN 60825-1 regulations

• FDA regulations

Built-in safety features include:

• Keyed interlock

• Emission delay

• Internal and case interlock

• Scan-fail safety

• Mechanical shutter

• Adjustable aperture masking plate

Safety adjustments are handled via DMX directly from your lighting console.

---

What’s Included (Pack of 2)

• Two LaserRay 13 RGB (XY-IP65) units

• Heavy-duty rolling flight case

• Emergency stop (E-Stop) box

• 10M / 30ft E-Stop cable

• 10M / 30ft DMX cable

• 1.5M / 4.5ft power cable

• Interlock

• Keys

• Manual

• Quickstart guide

• Variance card

• Service dongle (if outside US)

---

Designed for Professional Applications

Ideal for:

• Stadium productions

• Arena tours

• Mega clubs

• Theaters

• Houses of worship

• Mid-sized outdoor festivals

If you're building high-impact beam shows, aerial effects, or wide-area laser installations, the Unity LaserRay 13 delivers commercial-grade performance in a road-ready package.
