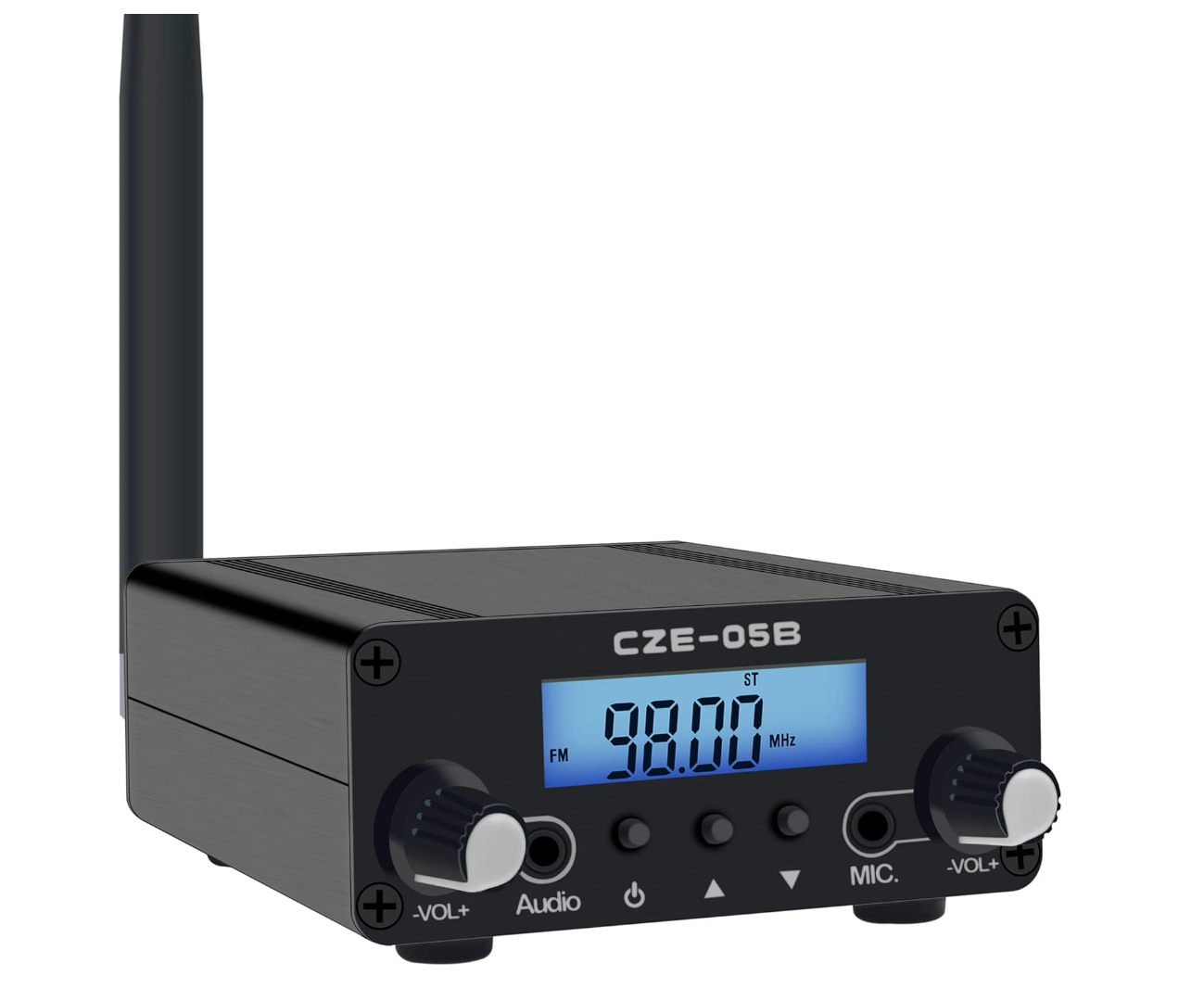

FM Transmitter (With optional outdoor enclosure)

FM Transmitter (With option outdoor enclosure)

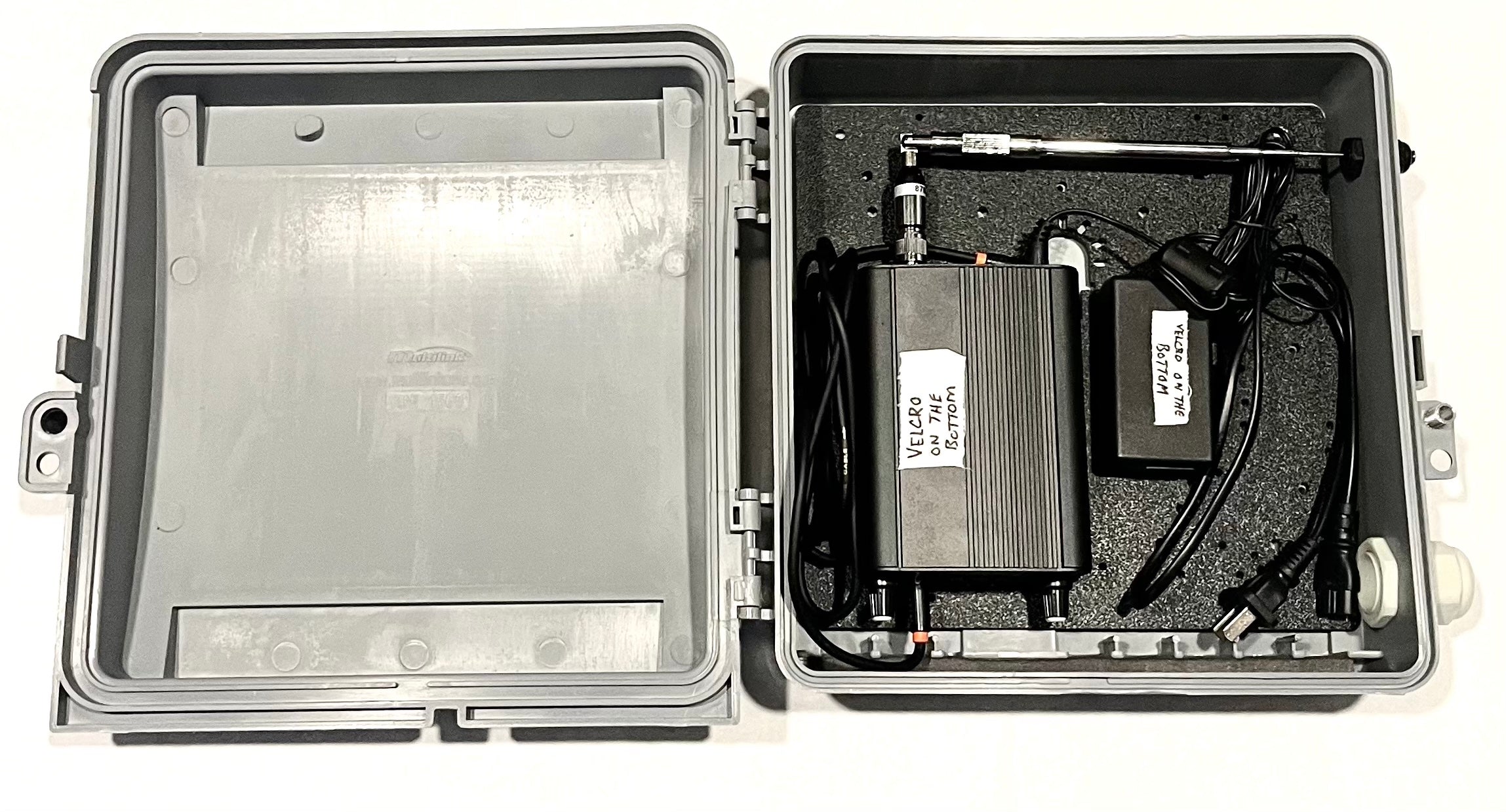

For outdoor locations, please select outdoor version with enclosure

1x FM Transmitter

1x Power Supply

1 x Antenna

1x User Manual

 Specifications:

1. Power Output: 1-1.7Watt/5-6Watt

2. FM Transmitter Frequencies: 76-108Mhz

3. Tuning Step: 100Khz/0.1Mhz

4. Power Supply: 12V DC (The current load of power supply should over 2A)

5. Stability of Frequency: ±0ppm（-10℃~+50℃）

6. Frequency Response: 100 - 15000Hz

7. Signal to Noise Ratio: >70dB

8. Distortion: < 0.5%

9. Operation Time: True24/7

10. Antenna Design: Rubber Antenna(1Watt) / GP Antenna(1Watt/7Watt)

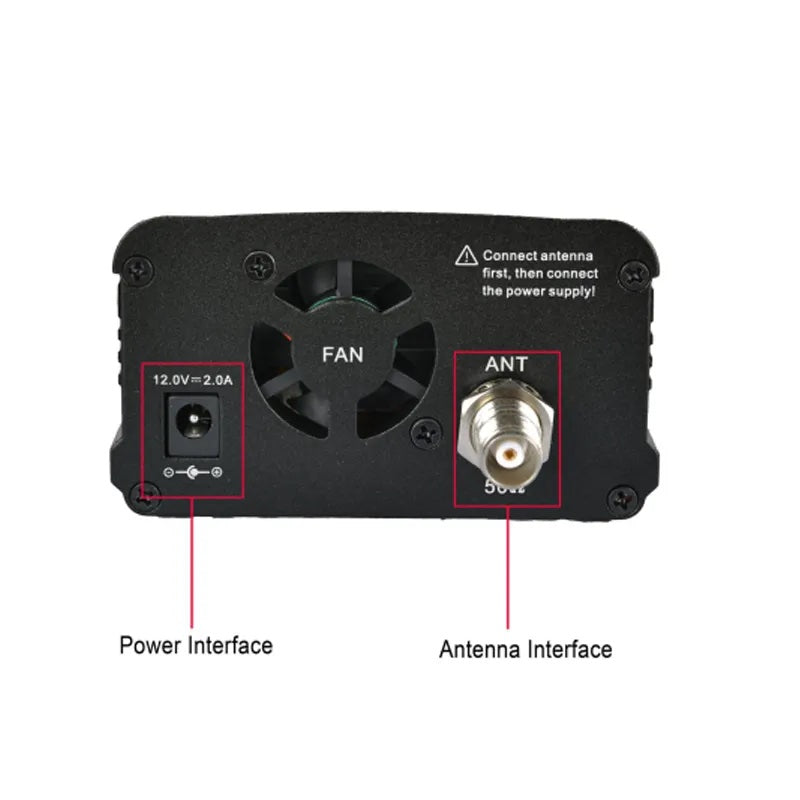

11. Antenna Connector: TNC type

12. Output Impedance: 50 ohm

13. Audio Input Connector:  3.5mm headphone connector

14. Mic Input Connector:  3.5mm headphone connector (Use condenser microphone)

15.Tuning Design:  Stable PLL Technology

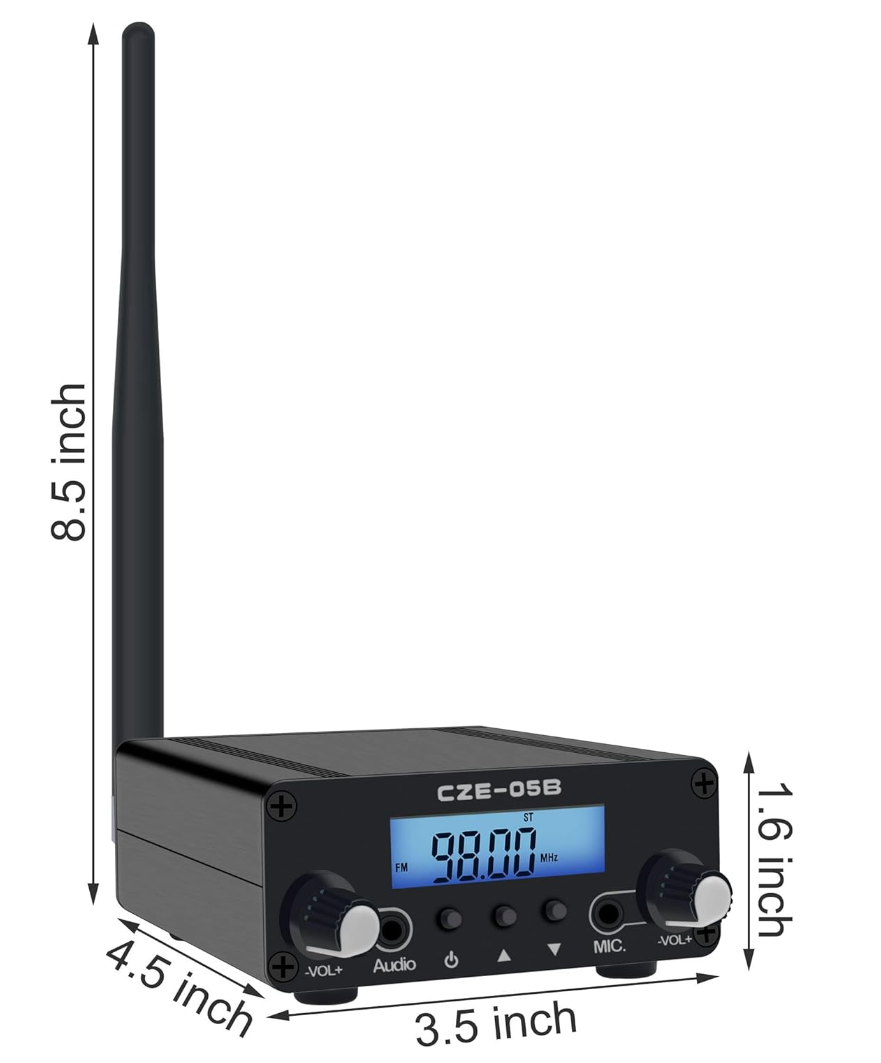

16.Size of Transmitter :  L:129mm, W:96mm, H:55mm

17.Weight of Transmitter : 450g

18.Transmission Signal: FM Stereo
